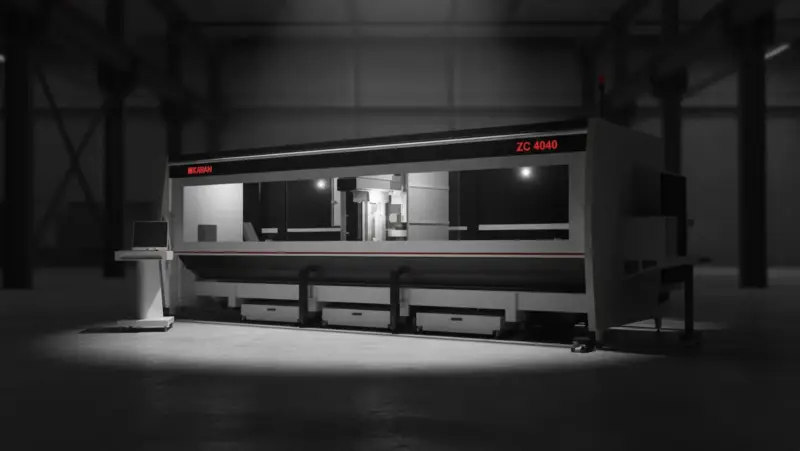

Kaban ZC 4040 4 Axis Machining Center for Aluminium

Premium Product Information for High-Speed Aluminium Profile Machining

The Kaban ZC 4040 is a high-performance 4 axis machining center for aluminium developed for manufacturers who need precision, speed, repeatability, and stable production quality in modern profile processing. Designed for industrial use, this advanced CNC machining center for aluminium profiles combines a robust mechanical structure, high dynamic axis movement, a powerful spindle, integrated sawing capability, and automation-focused machine functions in one compact and production-oriented platform.

For companies producing aluminium windows, aluminium doors, facade elements, partition systems, light structural profiles, and other profile-based components, the Kaban ZC 4040 offers the performance expected from a premium aluminium profile machining center. It is engineered to support both serial production and flexible daily job changes while maintaining machining accuracy and process reliability.

This machine is especially suitable for businesses searching for a 4 axis CNC machining center, CNC aluminium profile machine, aluminium profile processing machine, or CNC machine for aluminium profiles with strong mechanical stability and practical automation features for long-term industrial operation.

What the Kaban ZC 4040 Is Designed For

The Kaban ZC 4040 is built for machining aluminium profiles used in architectural and industrial applications. As a professional 4 axis machining center for aluminium, it supports precise milling, drilling, routing, slotting, and cutting operations on profile surfaces with high repeatability and efficient cycle times.

In real production environments, manufacturers need more than just spindle power. They need a machine that can process profiles consistently, reduce manual intervention, and maintain stable performance over long shifts. The Kaban ZC 4040 is designed to meet those requirements with a balanced combination of axis dynamics, spindle capability, vice capacity, tool magazine support, and Mitsubishi-based control reliability.

It is particularly well suited for:

  • Aluminium window profile machining

  • Aluminium door profile production

  • Facade and architectural profile processing

  • Industrial aluminium profile fabrication

  • Hardware preparation and slot machining

  • Multi-operation profile machining in one setup

Why a 4 Axis Machining Center Is a Strong Choice

A modern 4 axis machining center provides an excellent balance between flexibility, productivity, and cost efficiency for many aluminium profile machining applications. For manufacturers processing standard and semi-complex profile geometries, a 4 axis CNC machining center for aluminium can deliver high production performance while keeping operation and process planning practical.

The Kaban ZC 4040 is an ideal solution for companies that require a professional aluminium CNC machine with strong machining capability but do not necessarily need a full 5-axis system. It is designed to deliver precise machining and dependable output in applications where speed, repeatability, and robustness are critical.

Strong Production Efficiency

A 4 axis aluminium profile machining center is often the preferred option for factories that need fast throughput for window and door profile operations. It supports efficient machining strategies and repeatable positioning while remaining highly practical for daily production workflows.

Reduced Manual Handling

By combining multiple operations in one CNC machine platform, the Kaban ZC 4040 helps reduce manual profile repositioning and handling steps. This lowers the risk of errors, improves consistency, and supports better productivity.

Reliable Output in Serial Manufacturing

For serial production, repeatability is one of the most important performance indicators. The Kaban ZC 4040 is designed to provide stable machining quality shift after shift, which makes it a strong fit for industrial profile production.

Key Highlights of the Kaban ZC 4040

Robust Mechanical Structure Suitable for High Speed

The Kaban ZC 4040 features a robust mechanical structure suitable for high-speed operation. In any premium CNC machining center for aluminium, machine rigidity is essential because it directly affects vibration behavior, machining accuracy, tool life, and long-term performance.

A stable mechanical base allows the machine to maintain precision under dynamic machining conditions. This is especially important for a high speed aluminium machining center, where fast movements and cutting loads must be handled without compromising process quality.

For manufacturers comparing a CNC aluminium profile machine, robust construction is one of the most important features for reliable industrial use, and the Kaban ZC 4040 is engineered accordingly.

Axis Speeds Averaging 95 m/d

The Kaban ZC 4040 is designed with axis speeds averaging 95 m/d (as specified), supporting fast movement between machining positions and improved overall cycle efficiency. High axis speed is a major productivity advantage because it reduces non-cutting travel time and helps increase machine output in serial production.

For companies searching for a high speed CNC machining center or fast aluminium profile CNC machine, axis dynamics are a key decision factor. The Kaban ZC 4040 delivers strong motion performance for daily industrial machining tasks while maintaining control and repeatability.

Profile Machining Length 4175 mm

With a profile machining length of 4175 mm, the Kaban ZC 4040 is suitable for a wide range of aluminium profile applications commonly used in window, door, and facade production. This working length supports efficient processing of medium and long profiles without excessive re-clamping or repositioning.

Many buyers look for an aluminium profile machining center 4175 mm or a long profile CNC machine for aluminium when evaluating machines for architectural profile production. The Kaban ZC 4040 offers a practical and production-ready working range for these applications.

Machinable Profile Section Size 285 x 300 mm

The Kaban ZC 4040 can process a machinable profile section size of 285 x 300 mm, allowing manufacturers to work with a broad range of profile geometries. This makes the machine suitable for standard aluminium systems as well as larger profile sections used in selected architectural and industrial applications.

For buyers comparing a CNC machining center for aluminium profiles, profile section capacity is a critical specification because it determines the machine’s versatility. The Kaban ZC 4040 offers a strong balance of profile length capacity and section size machinability.

Number of Vices: 6 pcs

The machine is equipped with 6 vices, providing secure and stable workholding during machining operations. Reliable workpiece holding is essential in any CNC machine for aluminium profiles because it directly affects dimensional precision, surface quality, and process safety.

A well-configured vice system helps maintain profile stability during milling, drilling, and routing operations, especially at higher spindle and axis speeds. For production environments focused on repeatable quality, the 6-piece vice configuration of the Kaban ZC 4040 provides practical value and process confidence.

Spindle Motor 11 kW, 20,000 rpm

The Kaban ZC 4040 features a powerful 11 kW spindle motor with a maximum speed of 20,000 rpm, providing strong machining capability for demanding aluminium profile operations. This spindle performance supports efficient milling, routing, slotting, and drilling while maintaining productivity and machining quality.

Manufacturers often search for a 20,000 rpm spindle CNC machine, 11 kW spindle CNC machining center, or high speed spindle aluminium CNC machine when evaluating machine performance. The spindle configuration of the Kaban ZC 4040 places it in a strong position for industrial aluminium profile processing.

Number of Magazine Teams: 8 Pieces

The Kaban ZC 4040 includes 8 magazine teams (8-piece tool magazine capacity), enabling efficient multi-operation machining with reduced manual tool changes. Tool magazine capacity is an important factor in a professional CNC aluminium machining center because it influences automation level, setup continuity, and machining flexibility.

An 8-tool configuration supports a broad range of standard machining programs and helps manufacturers reduce interruptions in daily production. For buyers seeking a CNC machining center with tool magazine or automatic tool change aluminium CNC machine, this feature adds productivity value.

Saw Ø 200 mm

The integrated Ø 200 mm saw expands the machine’s process capability by combining machining and cutting functions in one system. This integrated approach improves workflow efficiency, reduces profile transfer time, and supports better process control compared to separate machine setups.

For manufacturers searching for an integrated aluminium machining and cutting center, aluminium profile cutting and machining center, or CNC saw and machining center for aluminium, the Kaban ZC 4040 offers a practical production solution that saves time and helps optimize floor space.

Mitsubishi PLC Control Unit

The Kaban ZC 4040 is equipped with a Mitsubishi PLC control unit, providing industrial-grade automation reliability and stable machine behavior. A trusted control platform is a major advantage in professional CNC production because it supports dependable operation, easier maintenance planning, and long-term service confidence.

Buyers often prefer a Mitsubishi PLC aluminium machine or CNC profile machine with Mitsubishi control because recognized components contribute to lower operational risk and stronger confidence in machine performance.

Clamps Positioned by the X Axis

One of the important process features of the Kaban ZC 4040 is that the clamps are positioned by the X axis. This improves setup efficiency and supports more precise and repeatable clamping positions during profile machining.

In serial production, automated clamp positioning functions can reduce operator workload and help maintain consistent workholding across different job setups. This is especially valuable for companies seeking an automatic profile machining center with process-oriented features that improve productivity and repeatability.

Automatic Tool Recovery in Case of Power Failure

The Kaban ZC 4040 includes automatic tool recovery in case of power failure, an important reliability and protection feature for industrial operation. In real factory conditions, power interruptions can happen, and safe recovery behavior is essential for protecting the machine, tooling, and production process.

This function helps reduce downtime, supports safer restart procedures, and improves operational confidence in long-term production use. It is a valuable feature that strengthens the Kaban ZC 4040 as a professional industrial aluminium CNC machining center.

Application Areas of the Kaban ZC 4040

Aluminium Window Profile Machining

The Kaban ZC 4040 is highly suitable as an aluminium window profile machining center for processing frame and sash profiles. Window production requires accurate machining for hardware mounting, drainage slots, connection points, and general profile preparation. The machine’s spindle performance, working length, and vice configuration support efficient and repeatable output.

Aluminium Door Profile Production

Aluminium door systems require consistent machining and cutting quality for frame components, lock preparation, hinge areas, and assembly-related features. As a reliable CNC aluminium profile machine, the Kaban ZC 4040 supports precise profile processing and stable serial production.

Facade and Architectural Profile Processing

Facade and architectural systems often demand repeatable machining accuracy and reliable profile handling. The Kaban ZC 4040 provides a suitable combination of profile machining length, section capacity, spindle performance, and control reliability for many facade profile processing applications.

Industrial Aluminium Profile Fabrication

Beyond windows and doors, the Kaban ZC 4040 is also suitable for industrial aluminium profile fabrication such as machine frames, support structures, and custom profile-based assemblies. Its versatility makes it a strong option for manufacturers serving multiple sectors.

Why Choose the Kaban ZC 4040

The Kaban ZC 4040 combines the core features manufacturers need in a modern 4 axis machining center for aluminium: rigid mechanical design, strong spindle performance, practical tool magazine capacity, integrated saw functionality, Mitsubishi PLC reliability, and automation-oriented process features such as X-axis clamp positioning and power-failure tool recovery.

For companies seeking a premium CNC machining center for aluminium profiles that improves productivity while maintaining precision and repeatability, the Kaban ZC 4040 is a strong and future-ready investment. It supports efficient production workflows, reduced operator dependency, and stable machining quality across a broad range of aluminium profile applications.

Technical Highlights Summary

  • Robust mechanical structure suitable for high speed

  • Axis speeds averaging 95 m/d

  • Profile machining length 4175 mm

  • Machinable profile section size 285 x 300 mm

  • Number of vices 6 pcs

  • Spindle motor 11 kW 20,000 rpm

  • Number of magazine teams 8 pieces

  • Saw Ø 200 mm

  • Mitsubishi PLC control unit

  • Clamps positioned by the X axis

  • Automatic tool recovery in case of power failure
