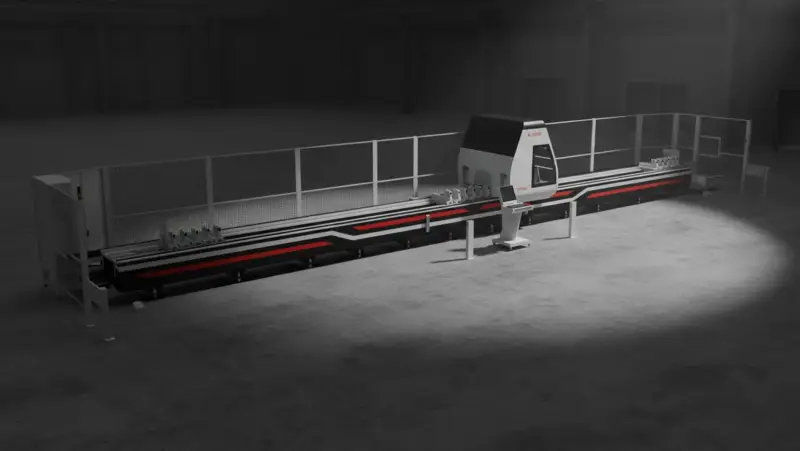

5 Axis Machining Center for Aluminium Profiles - Kaban ZC 3054

Premium Product Information for Extra-Long, High-Speed Aluminium Profile Processing

The Kaban ZC 3054 is a high-performance 5 axis machining center for aluminium profiles developed for manufacturers who need long profile capacity, high-speed machining, reliable repeatability, and advanced process automation in industrial production. Designed as a premium CNC machining center for aluminium profiles, this machine combines a robust mechanical structure, dynamic axis motion, high-speed spindle performance, integrated sawing capability, large workholding capacity, and intelligent automation features in one production-focused platform.

For companies producing aluminium windows, aluminium doors, curtain wall systems, facade structures, industrial frames, and custom aluminium profile assemblies, the Kaban ZC 3054 offers the performance expected from a modern aluminium profile machining center. It is engineered for both serial production and project-based manufacturing where profile lengths, throughput demands, and machining consistency require a professional solution.

This machine is especially suitable for businesses searching for a 5 axis CNC machining center, CNC aluminium profile machine, aluminium profile processing machine, or long profile CNC machining center with high-speed capability and automation-oriented functions for efficient daily operation.

What the Kaban ZC 3054 Is Designed For

The Kaban ZC 3054 is designed for precision machining and cutting of aluminium profiles used in architectural and industrial applications. As a professional 5 axis machining center for aluminium profiles, it supports multi-surface operations such as milling, drilling, routing, slotting, pocketing, and cutting with high repeatability and CNC-controlled precision.

A 5-axis machine concept is particularly valuable in aluminium profile production because many profiles require angled machining, multi-face access, and accurate feature positioning in one setup. The Kaban ZC 3054 helps reduce manual repositioning, improves process continuity, and supports efficient cycle times across long production runs.

Typical application areas include:

  • Aluminium window profile machining

  • Aluminium door profile production

  • Curtain wall and facade profile processing

  • Architectural aluminium system manufacturing

  • Industrial aluminium extrusion machining

  • Long-format profile component production

  • Multi-operation machining and cutting workflows

For manufacturers looking for a 5 axis aluminium profile machining center with extra-long processing range and stable high-speed performance, the Kaban ZC 3054 is a strong and future-ready solution.

Why a 5 Axis Machining Center Adds Value in Aluminium Profile Manufacturing

A 5 axis CNC machining center for aluminium provides greater flexibility and higher productivity than simpler machine concepts because it enables better tool orientation, improved access to multiple profile surfaces, and reduced setup changes. In real production, this means faster workflows, fewer manual interventions, and better repeatability.

The Kaban ZC 3054 is designed to deliver these benefits in a production-friendly format, especially for manufacturers processing long aluminium profiles and mixed profile systems.

Better Access to Complex Profile Features

Modern aluminium profile systems often include machining points for hinges, locks, connectors, drainage slots, fastening points, and hardware mounting. A 5 axis machining center for aluminium profiles allows more efficient access to these areas, supports accurate machining strategies, and reduces repositioning requirements.

Higher Productivity in Serial and Mixed Production

Factories that process multiple profile series and frequent order changes need machines that remain productive under varying conditions. The Kaban ZC 3054 supports this need through high axis speed, tool magazine capacity, automatic positioning clamps, and automatic tool length measurement.

Improved Repeatability and Process Stability

In industrial production, repeatability is essential. The Kaban ZC 3054 combines a robust mechanical structure, Mitsubishi CNC control, secure workholding, and automation functions to support stable machining quality across long shifts and large batch sizes.

Core Highlights of the Kaban ZC 3054

Robust Mechanical Structure Suitable for High Speed

The Kaban ZC 3054 features a robust mechanical structure suitable for high-speed operation. In a professional CNC aluminium machining center, machine rigidity is critical because it directly affects vibration control, dimensional accuracy, tool behavior, and long-term reliability.

A stable machine body forms the foundation for consistent machining results, especially when high axis speeds and high spindle speeds are used in demanding aluminium profile machining operations. For manufacturers comparing a high speed aluminium machining center, the mechanical strength of the Kaban ZC 3054 is a key production advantage.

Axis Speeds Averaging 100 m/d

The Kaban ZC 3054 is designed with axis speeds averaging 100 m/d (as specified), enabling fast positioning between machining points and improved cycle efficiency. In daily production, reducing non-cutting movement time is one of the most effective ways to increase throughput and machine utilization.

For companies searching for a high speed CNC machining center or fast aluminium profile CNC machine, axis dynamics are a major decision factor. The Kaban ZC 3054 combines strong motion performance with stable machining behavior for reliable industrial output.

Profile Processing Length 15000 mm

One of the most important strengths of the Kaban ZC 3054 is its exceptional profile processing length of 15000 mm. This extra-long working capacity makes the machine highly suitable for manufacturers processing long aluminium profiles used in curtain walls, facade systems, architectural frames, and industrial assemblies.

Manufacturers often search for a long profile CNC machining center, extra long aluminium profile machining center, or aluminium profile machining center 15000 mm when they need to process long profiles efficiently in one setup. The Kaban ZC 3054 directly addresses this requirement and delivers a strong productivity advantage for large-format profile production.

Double Station Profile Machining Length 7300 mm x 2

The Kaban ZC 3054 also offers a double station profile machining length of 7300 mm x 2, adding substantial production flexibility. This double-station configuration can improve machine utilization and support more efficient workflow planning when processing long and medium-length profile jobs in batch production.

For manufacturers looking for a double station CNC machining center or dual station aluminium machining center, this feature creates a major operational advantage and supports adaptable production scheduling.

Machinable Profile Section Size 450 x 300 mm

The Kaban ZC 3054 provides a machinable profile section size of 450 x 300 mm, allowing a wide range of aluminium profile geometries to be processed on one machine platform. This makes the machine suitable for standard architectural profiles as well as larger sections used in selected industrial and facade applications.

Profile section capacity is one of the most important specifications when selecting a CNC machining center for aluminium profiles because it determines long-term versatility. The Kaban ZC 3054 offers a strong balance of extra-long processing length and practical cross-section capacity.

Number of Vices: 20 pcs

The Kaban ZC 3054 is equipped with 20 vices, providing extensive and stable workholding support for extra-long profiles and multi-operation machining cycles. Reliable clamping is essential in a CNC machine for aluminium profiles because it influences precision, repeatability, vibration behavior, and process safety.

A high number of vices is especially valuable in long profile machining, where stable support over the entire profile length helps maintain machining accuracy. For manufacturers focused on high-quality output and process consistency, the 20-vice configuration of the Kaban ZC 3054 is a significant production benefit.

Spindle Motor 8.5 kW, 24,000 rpm

The Kaban ZC 3054 features a high-speed spindle motor rated 8.5 kW with a maximum speed of 24,000 rpm. This spindle setup provides the cutting speed and machining capability needed for demanding aluminium profile applications, including milling, routing, slotting, drilling, and precision contour work.

A high-speed spindle is a core requirement in a premium 5 axis CNC machining center for aluminium profiles because it directly affects machining quality and productivity. Manufacturers frequently search for a 24,000 rpm spindle CNC machine or high speed spindle aluminium CNC machine, and the Kaban ZC 3054 is strongly positioned in this category.

Number of Magazine Teams: 12 Pieces

The Kaban ZC 3054 includes 12 magazine teams (12-piece tool magazine capacity), supporting multi-operation machining with fewer manual tool changes. Tool magazine capacity is an important factor in a modern aluminium CNC machining center because it improves automation continuity and supports more complex part programs.

A 12-tool setup offers practical production benefits:

  • More tools available in one cycle

  • Reduced setup interruptions

  • Faster changeover between jobs

  • Better flexibility in mixed profile production

  • Higher machine utilization in serial workflows

For manufacturers evaluating a CNC machining center with tool magazine or automatic tool change aluminium CNC machine, the Kaban ZC 3054 offers a strong automation-oriented solution.

Saw Ø 400 mm

The integrated Ø 400 mm saw expands the process capability of the Kaban ZC 3054 by combining machining and cutting in one machine platform. This integrated concept improves workflow continuity, reduces profile transfer time, and helps optimize factory layout and labour efficiency.

For manufacturers searching for an integrated aluminium machining and cutting center, aluminium profile cutting and machining center, or CNC saw and machining center for aluminium, the Kaban ZC 3054 provides a practical and productivity-focused advantage. Integrated sawing also helps reduce handling-related errors and supports better process consistency.

Mitsubishi CNC Control Unit

The Kaban ZC 3054 is equipped with a Mitsubishi CNC control unit, delivering industrial-grade motion control, precision path management, and dependable machine operation. In a professional 5 axis machining center, the CNC control system is central to repeatability, machining accuracy, and long-term reliability.

Manufacturers often prefer recognized CNC platforms because they support easier maintenance planning, stronger technical confidence, and stable industrial performance. The Mitsubishi CNC integration in the Kaban ZC 3054 reinforces its position as a premium industrial aluminium CNC machining center.

Automatic Tool Length Measurement

The Kaban ZC 3054 includes automatic tool length measurement, an essential feature for maintaining machining precision and reducing manual setup time. Accurate tool length data is critical for consistent results, especially in multi-tool and multi-axis machining programs.

This function supports:

  • Improved dimensional consistency

  • Reduced setup error risk

  • Faster machine preparation

  • Better tool management

  • More reliable repeatability

For manufacturers comparing a CNC machining center with automatic tool measurement, the Kaban ZC 3054 offers a strong efficiency and quality advantage.

Automatic Positioning Clamps

The Kaban ZC 3054 is equipped with automatic positioning clamps, which improve setup speed and clamping repeatability. Automated clamp positioning reduces manual adjustment effort and helps maintain consistent workpiece placement across different profile types and production batches.

In serial production and long-profile workflows, this feature directly contributes to higher productivity and lower operator dependency. It is a key benefit for companies looking for an automatic profile machining center with advanced setup automation.

Automatic Tool Recovery in Case of Power Failure

The Kaban ZC 3054 includes automatic tool recovery in case of power failure, a valuable safety and continuity feature for industrial manufacturing. Unexpected power interruptions can occur in real factory conditions, and safe recovery behavior is important for machine protection and process continuity.

This function helps reduce downtime, supports safer restart procedures, and improves operational confidence over the long term, making the Kaban ZC 3054 a stronger investment for demanding production environments.

Application Areas of the Kaban ZC 3054

Aluminium Window and Door Profile Production

The Kaban ZC 3054 is suitable for high-capacity machining of aluminium window and door profiles, including frame, sash, mullion, and structural components. Its 5-axis flexibility, high-speed spindle, and long processing capacity support precise and repeatable machining for hardware preparation, slots, and connection features.

Curtain Wall and Facade Profile Processing

With a 15000 mm profile processing length and double station machining length 7300 mm x 2, the Kaban ZC 3054 is especially strong in curtain wall and facade profile processing. It is designed for manufacturers working with long aluminium sections where throughput and precision must be achieved together.

Industrial Aluminium Extrusion Machining

The Kaban ZC 3054 is also a strong solution for industrial aluminium extrusion machining, including machine frames, support systems, automation structures, and custom technical assemblies. Its long-bed capacity and high vice count make it a versatile machine for multi-sector production.

Why Choose the Kaban ZC 3054

The Kaban ZC 3054 combines the features manufacturers need in a premium 5 axis machining center for aluminium profiles: robust mechanical design, high-speed axis motion, extra-long profile processing capacity, strong workholding with 20 vices, high-speed spindle performance, integrated Ø 400 mm saw, Mitsubishi CNC reliability, and advanced automation functions.

For companies seeking a high-capacity CNC machining center for aluminium profiles that improves throughput while maintaining precision and repeatability, the Kaban ZC 3054 is a strong and future-ready choice. It supports efficient production workflows, reduced manual intervention, and professional-grade machining performance across a wide range of aluminium profile applications.

Technical Highlights Summary

  • Robust mechanical structure suitable for high speed

  • Axis speeds averaging 100 m/d

  • Profile processing length 15000 mm

  • Double station profile machining length 7300 mm x 2

  • Machinable profile section size 450 x 300 mm

  • Number of vices 20 pcs

  • Spindle motor 8.5 kW 24,000 rpm

  • Number of magazine teams 12 pieces

  • Saw Ø 400 mm

  • Mitsubishi CNC control unit

  • Automatic tool length measurement

  • Automatic positioning clamps

  • Automatic tool recovery in case of power failure
