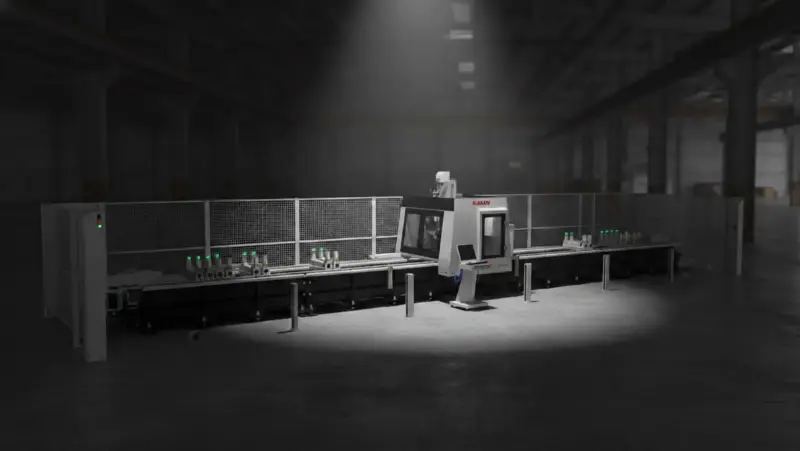

CNC Machining Center 5 Axis for Aluminium Kaban ZC 3064

Premium Product Information for Extra-Long, High-Speed Aluminium Profile Processing

The Kaban ZC 3064 is a high-performance 5 axis machining center for aluminium developed for manufacturers who require maximum profile length capacity, high-speed machining, repeatable precision, and advanced process reliability in industrial production. Designed as a premium solution for modern aluminium profile processing, this machine combines a robust mechanical structure, dynamic axis movement, a powerful high-speed spindle, integrated sawing capability, large workholding capacity, and intelligent automation features in one production-focused platform.

For companies producing aluminium windows, aluminium doors, curtain wall systems, facade structures, industrial frames, and large profile-based assemblies, the Kaban ZC 3064 offers the performance level expected from a professional CNC machining center for aluminium profiles. It is engineered for both serial manufacturing and project-based production, with a special advantage in applications requiring long profile machining and large cross-section handling.

As an advanced aluminium profile machining center, the Kaban ZC 3064 is especially suitable for businesses searching for a 5 axis CNC machining center, CNC aluminium profile machine, aluminium profile processing machine, or long profile CNC machining center with strong mechanical stability and automation-oriented productivity features.

What the Kaban ZC 3064 Is Designed For

The Kaban ZC 3064 is designed for precision machining and cutting of aluminium profiles used in architectural and industrial applications. As a professional 5 axis machining center for aluminium profiles, it supports multi-surface machining operations such as milling, drilling, routing, slotting, pocketing, and cutting with high repeatability and stable CNC-controlled accuracy.

A 5-axis machine concept is especially valuable in aluminium profile production because many profile systems require angled machining, multi-side access, and complex feature positioning. The Kaban ZC 3064 helps reduce manual repositioning, improves process continuity, and supports more efficient cycle times in demanding production environments.

Typical application areas include:

Aluminium window profile machining
Aluminium door profile production
Curtain wall and facade profile processing
Architectural aluminium system manufacturing
Industrial aluminium extrusion machining
Large-format profile component production
Multi-operation machining and cutting workflows

For manufacturers looking for a 5 axis aluminium profile machining center with extra-long machining capacity and industrial-grade automation, the Kaban ZC 3064 is a strong and future-ready solution.

Why a 5 Axis Machining Center Is Important in Aluminium Profile Production

A 5 axis CNC machining center for aluminium provides a major productivity and flexibility advantage compared to simpler machine concepts. In real production, aluminium profiles often require operations on multiple faces and at different angles. A 5-axis configuration improves tool orientation, reduces setup changes, and supports better machining access in one system.

The Kaban ZC 3064 is designed to deliver these benefits while also providing exceptional length capacity for long profile processing.

Better Tool Access for Complex Profile Features

Modern aluminium systems frequently include machining points for hinges, locks, connectors, drainage, hardware mounting, and assembly interfaces. A 5 axis machining center for aluminium allows improved access to these positions and supports accurate machining strategies with fewer manual interventions.

Higher Throughput in Mixed and Serial Production

Factories that process many profile types and frequent order changes need machines that remain productive under varying conditions. The Kaban ZC 3064 supports this with fast axis movement, automatic tool measurement, automatic positioning vices, and a large tool magazine configuration.

Improved Repeatability and Quality Control

In serial production, repeatability is critical. The Kaban ZC 3064 combines rigid mechanics, CNC precision, stable clamping, and automation features to support consistent machining results across long production runs and varied profile geometries.

Core Highlights of the Kaban ZC 3064

Robust Mechanical Structure Suitable for High Speed

The Kaban ZC 3064 features a robust mechanical structure suitable for high-speed operation. In any professional CNC aluminium machining center, machine rigidity is essential because it influences vibration behavior, dimensional precision, tool performance, and long-term reliability.

A stable machine body creates the foundation for consistent machining quality, especially when high axis speeds and high spindle speeds are used in demanding profile operations. For manufacturers comparing a high speed aluminium machining center, mechanical strength is one of the most important performance indicators, and the Kaban ZC 3064 is engineered for exactly that purpose.

Axis Velocities Whose Average Exceeds 100 m/d

The Kaban ZC 3064 is designed with axis velocities whose average exceeds 100 m/d (as specified), enabling fast positioning between machining operations and improved cycle efficiency. In daily production, reduced non-cutting movement time can significantly increase throughput and machine utilization.

For companies searching for a high speed CNC machining center or fast aluminium profile CNC machine, dynamic axis performance is a key productivity factor. The Kaban ZC 3064 combines high axis speed with a robust machine structure to support reliable industrial performance.

Profile Machining Length 14,500 mm

One of the most important strengths of the Kaban ZC 3064 is its exceptional profile machining length of 14,500 mm. This extra-long working range makes the machine highly suitable for manufacturers processing long aluminium profiles used in curtain walls, facade systems, architectural frames, and large industrial assemblies.

Manufacturers often search for a long profile CNC machining center, extra long aluminium profile machining center, or aluminium profile machining center 14500 mm when they need to process long profiles efficiently in one setup. The Kaban ZC 3064 directly addresses this requirement and offers a strong productivity advantage for large-format profile production.

Double Station Profiling Length 7000 mm x 2

The Kaban ZC 3064 also offers a double station profiling length of 7000 mm x 2, adding important production flexibility. This double-station configuration can improve machine utilization and support more efficient workflow planning when processing long and medium-length profile jobs in batch production.

For manufacturers looking for a double station CNC machining center or dual station aluminium machining center, this feature is a major operational advantage. It supports adaptable production scheduling and helps maximize output in mixed manufacturing environments.

Machinable Cross Section Size 650 x 350 mm

The Kaban ZC 3064 provides a large machinable cross section size of 650 x 350 mm, allowing a broad range of profile dimensions to be processed on a single machine platform. This capacity is particularly valuable for larger facade profiles, structural aluminium sections, and industrial extrusion applications.

Profile section capacity is one of the key specifications when selecting a CNC machining center for aluminium profiles because it determines how versatile the machine will be over time. The Kaban ZC 3064 offers an excellent combination of long profile capacity and large cross-section machining capability.

Number of Clamps: 16 Pieces

The Kaban ZC 3064 is equipped with 16 clamps, providing strong and stable workholding support for long profiles and multi-operation machining cycles. Reliable clamping is essential for maintaining precision, repeatability, and process safety in a CNC machine for aluminium profiles.

A high clamp count is especially important in extra-long profile machining because it helps reduce vibration risk and supports accurate workpiece positioning over the full machining length. For manufacturers focused on high-quality output, the 16-clamp configuration of the Kaban ZC 3064 is a significant production advantage.

Spindle Motor 24,000 rpm / 10–12 kW

The Kaban ZC 3064 features a high-performance spindle motor rated 10–12 kW with a maximum speed of 24,000 rpm. This spindle configuration provides the power and cutting speed required for demanding aluminium profile machining tasks, including milling, routing, slotting, drilling, and precision contour operations.

A powerful high-speed spindle is a core requirement in a premium 5 axis CNC machining center for aluminium because it directly affects productivity and machining quality. Manufacturers often search for a 24,000 rpm spindle CNC machine, high speed spindle aluminium CNC machine, or 10 kW spindle CNC machining center when comparing machine performance. The Kaban ZC 3064 is strongly positioned in this category.

Number of Magazine Sets: 16 Pieces

The Kaban ZC 3064 includes 16 magazine sets, supporting advanced multi-operation machining with reduced manual tool change interruptions. Tool magazine capacity plays a major in the efficiency of a modern aluminium CNC machining center, especially in mixed production and complex part programs.

A 16-tool magazine setup supports:

More tools available for one machining cycle
Reduced setup interruptions
Better automation continuity
Faster changeover between profile programs
Higher machine utilization in serial production

For manufacturers evaluating a CNC machining center with tool magazine or automatic tool change aluminium CNC machine, the Kaban ZC 3064 offers strong process automation value.

Ø 500 mm Saw

The integrated Ø 500 mm saw expands the machine’s process capability by combining machining and cutting operations in one system. This integrated concept improves workflow continuity, reduces profile transfer time, and helps optimize floor space in industrial production plants.

For manufacturers searching for an integrated aluminium machining and cutting center, aluminium profile cutting and machining center, or CNC saw and machining center for aluminium, the Kaban ZC 3064 provides a highly practical production advantage. Integrated sawing also helps reduce handling-related errors and supports more consistent process control.

Mitsubishi CNC Control Unit

The Kaban ZC 3064 is equipped with a Mitsubishi CNC control unit, delivering industrial-grade motion control, precision path management, and dependable machine behavior. In a professional 5 axis machining center, the CNC control platform is central to repeatability, machining accuracy, and long-term production reliability.

Manufacturers often prefer recognized control brands because they support easier service planning, better technical support confidence, and stable industrial operation. The Mitsubishi CNC system in the Kaban ZC 3064 reinforces the machine’s position as a premium industrial aluminium CNC machining center.

Automatic Tool Length Measuring

The Kaban ZC 3064 includes automatic tool length measuring, an essential feature for maintaining machining precision and reducing manual setup time. Accurate tool length data is critical for consistent results in multi-tool and multi-axis machining programs.

This feature supports:

Improved dimensional consistency
Lower setup error risk
Faster preparation for production
Better tool management
More reliable repeatability

For manufacturers comparing a CNC machining center with automatic tool measurement, the Kaban ZC 3064 provides a strong efficiency and quality advantage.

Automatic Positioning Vices

The Kaban ZC 3064 is equipped with automatic positioning vices, which improve setup speed and clamping repeatability. Automated vice positioning reduces manual effort and helps maintain consistent workpiece placement across different production batches and profile types.

In serial production, this contributes directly to better productivity and lower operator dependency. It is a key benefit for companies seeking an automatic profile machining center with advanced setup automation.

Automatic Tool Recovery in Case of Power Failure

The Kaban ZC 3064 includes automatic tool recovery in case of power failure, a valuable reliability and protection feature for industrial manufacturing. In real factory conditions, unexpected power interruptions can occur, and safe recovery behavior is important for machine protection and process continuity.

This function helps reduce downtime, supports safer restart procedures, and improves operational confidence over the long term, making the Kaban ZC 3064 a stronger investment for demanding production environments.

Application Areas of the Kaban ZC 3064

Aluminium Window and Door Profile Production

The Kaban ZC 3064 is suitable for high-capacity processing of aluminium window and door profiles, including frame, sash, mullion, and structural components. The machine’s 5-axis flexibility, spindle performance, and automation features support precise and repeatable machining for hardware preparation, slotting, and connection features.

Curtain Wall and Facade Profile Processing

With a 14,500 mm profile machining length and 650 x 350 mm cross section capacity, the Kaban ZC 3064 is especially strong in curtain wall and facade profile processing. It is well suited for manufacturers working with long and large aluminium sections where accuracy and productivity must be achieved together.

Industrial Aluminium Extrusion Machining

The Kaban ZC 3064 is also a strong solution for industrial aluminium extrusion machining, including machine frames, support structures, automation system components, and custom technical assemblies. Its long-bed capability and large clamping capacity make it a versatile platform for multi-sector production.

Why Choose the Kaban ZC 3064

The Kaban ZC 3064 combines the core features manufacturers need in a premium 5 axis machining center for aluminium: robust mechanical design, high-speed axis dynamics, extra-long profile machining capacity, large cross-section handling, powerful spindle performance, integrated Ø 500 mm saw, Mitsubishi CNC reliability, and advanced automation functions.

For companies seeking a high-capacity CNC machining center for aluminium profiles that improves throughput while maintaining precision and repeatability, the Kaban ZC 3064 is a strong and future-ready choice. It supports efficient production workflows, reduced manual intervention, and professional-grade machining performance across a wide range of aluminium profile applications.

Technical Highlights Summary

Robust mechanical structure suitable for high speed
Axis velocities whose average exceeds 100 m/d
Profile machining length 14,500 mm
Double station profiling length 7000 mm x 2
Machinable cross section size 650 x 350 mm
Number of clamps 16 pieces
Spindle motor 24,000 rpm / 10–12 kW
Number of magazine sets is 16 pieces
Ø 500 mm saw
Mitsubishi CNC control unit
Automatic tool length measuring
Automatic positioning vices
Automatic tool recovery in case of power failure
