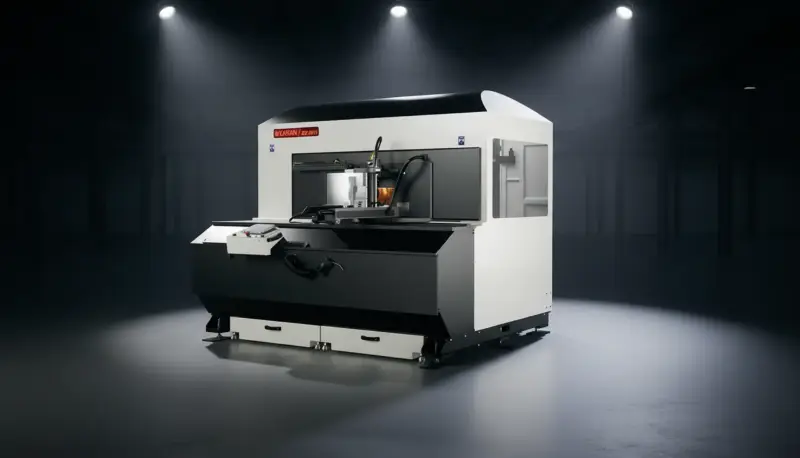

Aluminium Profile Facade Milling Machine KABAN ZE 2010

‹ ›

KABAN ZE 2010 Aluminium Profile Facade Milling Machine

High Precision Milling Technology for Advanced Aluminium Facade Applications

The KABAN ZE 2010 is a high-performance Aluminium Profile Facade Milling Machine developed for manufacturers that require precision, flexibility, and efficiency in the processing of demanding aluminium profile systems. In the production of facade structures, winter gardens, domes, skylight systems, and special architectural constructions, profile preparation must be accurate, stable, and fully reliable. A small deviation in profile milling can create major fitting problems in later assembly stages. This is why professional manufacturers increasingly rely on specialized machines that are designed specifically for complex facade profile applications.

As a modern Aluminium Facade Profile Milling Machine, the KABAN ZE 2010 offers a highly capable solution for processing profiles that require controlled notching, precise slot milling, and accurate profile adaptation for advanced construction systems. The machine has been designed to support manufacturers working with complex aluminium geometries and high quality expectations. With its servo-controlled saw positioning, movable saw unit, fixed profile processing principle, and compact working concept, it delivers both high precision and excellent space efficiency.

The KABAN ZE 2010 is especially valuable in modern production environments where manufacturers must combine technical accuracy with practical factory organization. It is a machine built not only for cutting performance, but also for repeatability, process stability, and industrial usability in facade profile manufacturing.

Designed for Facade Profiles and Special Aluminium Constructions

One of the strongest advantages of the KABAN ZE 2010 is its suitability for difficult and specialized aluminium profile applications. As a professional Facade Milling Machine for Aluminium Profiles, it is ideal for the manufacture of facade profiles, winter gardens, domes, and other special constructions where standard milling solutions are often not sufficient. In these applications, the processing demands are higher because profiles may have complex shapes, structural requirements, or unique installation geometries.

The machine works as a dedicated Aluminium Facade Processing Machine that supports manufacturers in producing high quality profile preparations for architecturally demanding systems. Facade construction is one of the most precision-sensitive areas of profile manufacturing. Since facade components must connect accurately across large surfaces and visible structural areas, every milled section has to meet strict dimensional requirements. The KABAN ZE 2010 helps create that reliability by providing stable and accurate processing conditions.

As an Aluminium Curtain Wall Milling Machine, it is also highly relevant for companies producing curtain wall systems, where mullions, transoms, connection points, and profile transitions require clean and exact milling results. In these projects, accuracy directly supports assembly speed, sealing quality, and the final appearance of the structure.

Ideal for Complex Architectural Systems

Modern aluminium construction often involves more than standard profile preparation. Winter gardens, domes, curtain walls, and custom facade elements require machining solutions that can handle large sections and complex notching requirements with confidence. The KABAN ZE 2010 provides this capability through a stable and purpose-built system tailored to advanced aluminium profile work.

Movable Saw Unit and Fixed Profile Processing for Greater Precision

A major technical strength of the KABAN ZE 2010 is its production concept. Thanks to the movable saw unit and the processing of the fixed profile, the machine delivers high precision while maintaining a low space requirement. This approach creates an important advantage in industrial processing. When the profile remains fixed and the saw unit moves precisely to the required position, the risk of handling error is reduced and dimensional repeatability improves.

This working principle makes the KABAN ZE 2010 a highly effective Precision Aluminium Profile Milling Machine for manufacturers that require exact results on large or difficult profile sections. In many aluminium facade applications, the stability of the profile during processing is just as important as the cutting or milling tool itself. Fixed profile processing helps ensure that the workpiece remains secure and that the machine can execute the programmed machining operation with consistent quality.

The result is better control, cleaner machining results, and improved repeatability in serial production. As a CNC Aluminium Profile Milling Machine, the KABAN ZE 2010 supports this precision with servo-controlled positioning that brings digital accuracy into every operation.

Efficient Use of Production Space

In addition to precision, the fixed-profile concept reduces the space requirement of the machine. This is an important advantage for factories and workshops that must balance machine performance with optimized floor layout. The KABAN ZE 2010 combines industrial capability with efficient use of working space, making it a smart choice for facilities that value both output quality and production organization.

Servo Controlled Saw Positioning for Accurate Machining

The KABAN ZE 2010 delivers high precision through servo-controlled saw positioning. This is one of the key features that raises the machine above conventional solutions. In aluminium facade profile processing, repeatable positioning is essential because inaccurate milling can compromise joint connections, structural fitting, and overall product quality. Servo positioning makes it possible to carry out operations with greater consistency and dependable dimensional accuracy.

As an Automatic Aluminium Profile Milling Machine, the machine supports a more advanced and controlled production process. Automation and servo-based positioning allow manufacturers to reduce reliance on manual adjustment while increasing the repeatability of important milling tasks. This is especially valuable in facade manufacturing, where production errors can be expensive and difficult to correct later.

The KABAN ZE 2010 therefore serves as an advanced Aluminium Facade Machining Center for companies that require more control over their production quality. A stable machine with precise positioning technology contributes directly to better results in notching, slot preparation, and facade-specific profile processing.

Stable Performance in Serial Production

High precision matters even more in serial production, where the same machining quality must be maintained across many parts. Servo-controlled systems help ensure that every workpiece is processed according to the same standard. This makes the KABAN ZE 2010 especially attractive for manufacturers aiming to combine craftsmanship-level precision with industrial-scale output.

Large Profile Capacity for Demanding Aluminium Systems

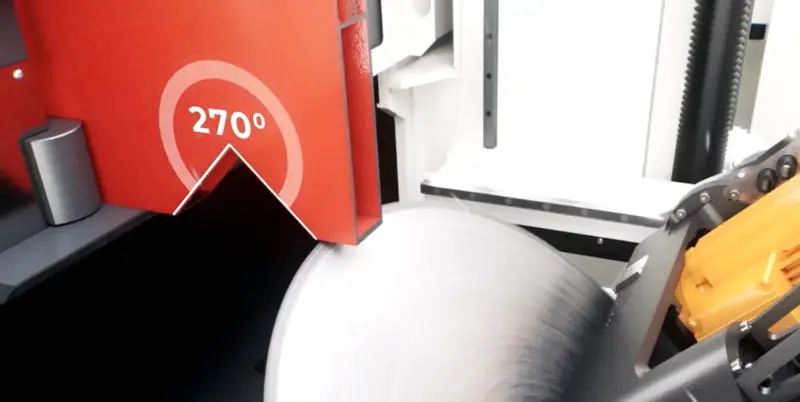

The KABAN ZE 2010 is equipped with a 650 mm saw diameter, giving it strong capability for industrial profile milling tasks. A large saw diameter supports stable operation and enables the machine to process demanding aluminium sections with greater efficiency. In heavy-duty facade work, the cutting unit must provide the power and reach necessary for accurate machining across substantial profile sizes.

The maximum profile size that can be processed is 300 x 300 mm, which positions the machine well for large and technically demanding facade profiles. This is particularly relevant in the production of curtain wall systems, structural facade elements, and custom architectural assemblies where standard profile dimensions are often exceeded.

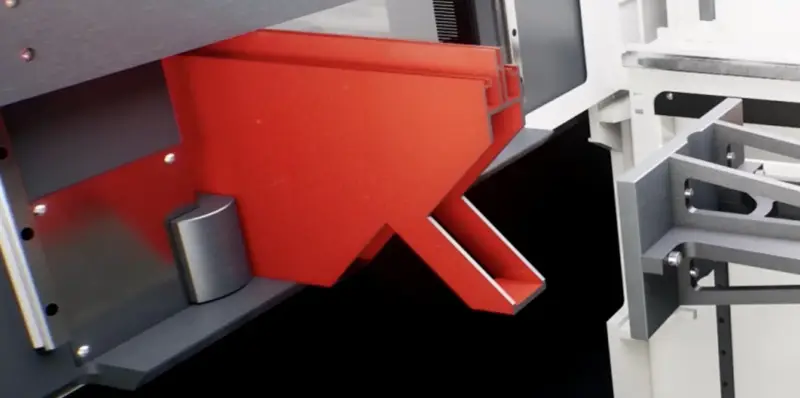

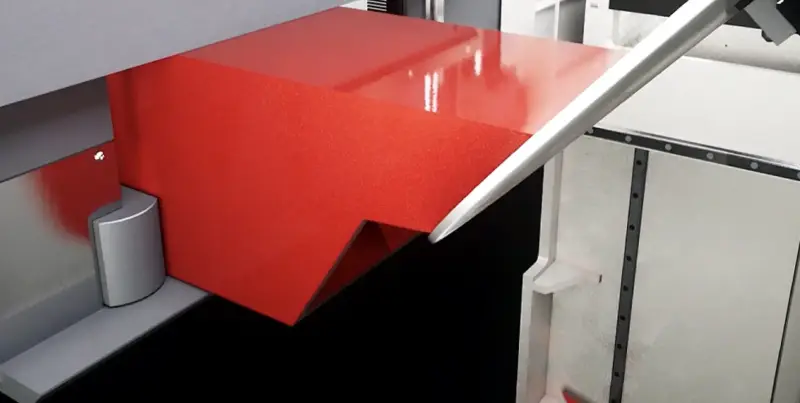

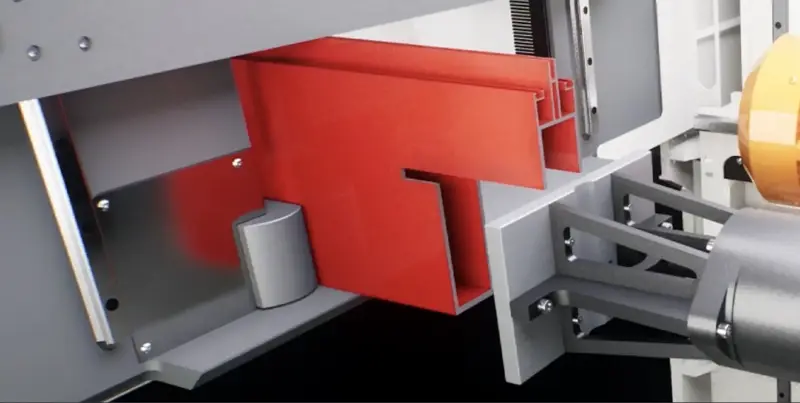

The machine also offers a maximum machinable notch height of 240 mm and a maximum notch depth of 240 mm. These dimensions make the KABAN ZE 2010 a highly capable Aluminium Profile Slot Milling Machine and a strong solution for complex profile adaptations. Deep and tall notches are often required in mullion and transom processing, especially where profiles intersect or integrate into advanced facade frames.

Built for Mullions, Transoms, and Structural Connections

Because of its profile size capacity and notch dimensions, the machine is also highly suitable as an Aluminium Mullion Milling Machine and Aluminium Transom Milling Machine. In facade systems, mullions and transoms are key structural elements, and their machining quality directly affects alignment, strength, and installation quality. The KABAN ZE 2010 is developed to support these exact requirements with confidence and consistency.

Pneumatically Controlled Support Table for Better Handling

Another important feature of the KABAN ZE 2010 is the pneumatically controlled support table with linear guide and angle adjustment. In aluminium profile processing, support quality plays a major in both safety and machining precision. Large or complex profiles must be positioned and supported correctly to ensure stable operation throughout the milling cycle.

The support table of the KABAN ZE 2010 has been designed to deliver optimum efficiency from the cutting area. The combination of pneumatic control, linear guidance, and angle adjustment gives manufacturers more control over profile handling and positioning. This strengthens the machine’s value as an Aluminium Facade Profile Processing Machine for companies that need reliable support during precise milling operations.

A well-designed support table also improves workflow and reduces setup difficulty for operators. Instead of relying on improvised support solutions, manufacturers can work with a machine system that is already optimized for demanding aluminium facade profiles. This contributes to better process discipline, smoother operation, and a more professional production environment.

Better Support Means Better Results

In profile processing, the handling system is not a secondary detail. It is part of the accuracy chain. A machine that supports the profile properly allows the cutting or milling system to perform at its full potential. This is why the KABAN ZE 2010 offers strong overall value as an Industrial Aluminium Facade Milling Machine.

Coolant Spray System for Reliable Cutting Conditions

The coolant spray system is another important feature that improves the performance of the KABAN ZE 2010 in demanding production conditions. In aluminium machining, heat management and clean cutting conditions are critical for maintaining tool quality, surface finish, and reliable process performance. A coolant system helps reduce stress on the cutting area and contributes to smoother and more stable machining.

As an Automatic Aluminium Profile Milling Machine, the KABAN ZE 2010 benefits from this integrated coolant support because it allows the machine to maintain better working conditions during continuous use. In industrial facade production, where long shifts and repeated operations are common, this becomes a major advantage. Better cooling contributes to consistent machining results and supports longer tool life.

The presence of a coolant spray system also strengthens the machine’s as a Precision Aluminium Profile Milling Machine for professional users. Clean and stable milling conditions are essential when profiles will later be joined in visible and structurally important facade assemblies.

Technical Data of KABAN ZE 2010

A Strong Investment for Modern Aluminium Facade Production

The KABAN ZE 2010 is a machine developed for manufacturers that need accurate, efficient, and industrially reliable processing of aluminium facade profiles. Its combination of servo-controlled precision, fixed profile processing, large profile capacity, advanced support table design, and coolant-supported operation makes it a valuable production asset for facade specialists.

As an Aluminium Profile Milling Machine, it supports manufacturers that need dependable performance in high-demand architectural work. As an Aluminium Facade Machining Center, it meets the expectations of companies producing curtain walls, mullions, transoms, and special structural elements. As a Precision Aluminium Profile Milling Machine, it delivers the quality required for professional industrial fabrication where fitting accuracy and process repeatability are essential.

Manufacturers investing in the KABAN ZE 2010 gain more than a machine. They gain a production solution designed for the real challenges of aluminium facade fabrication. In a market where technical quality, process stability, and efficient use of space all matter, the KABAN ZE 2010 stands out as a strong and future-ready option.

The KABAN ZE 2010 Aluminium Profile Facade Milling Machine is a highly capable solution for the precise processing of advanced aluminium facade profiles and special constructions. With its movable saw unit, fixed profile processing principle, servo-controlled saw positioning, 650 mm saw diameter, maximum profile size of 300 x 300 mm, maximum notch height and depth of 240 mm, pneumatically controlled support table with linear guide and angle adjustment, and coolant spray system, it offers a complete answer to demanding industrial milling requirements.

Its as an Aluminium Facade Profile Milling Machine, Facade Milling Machine for Aluminium Profiles, Aluminium Curtain Wall Milling Machine, Aluminium Mullion Milling Machine, Aluminium Transom Milling Machine, and Industrial Aluminium Facade Milling Machine makes it a valuable choice for manufacturers seeking precision, efficiency, and dependable industrial performance in aluminium facade production.
