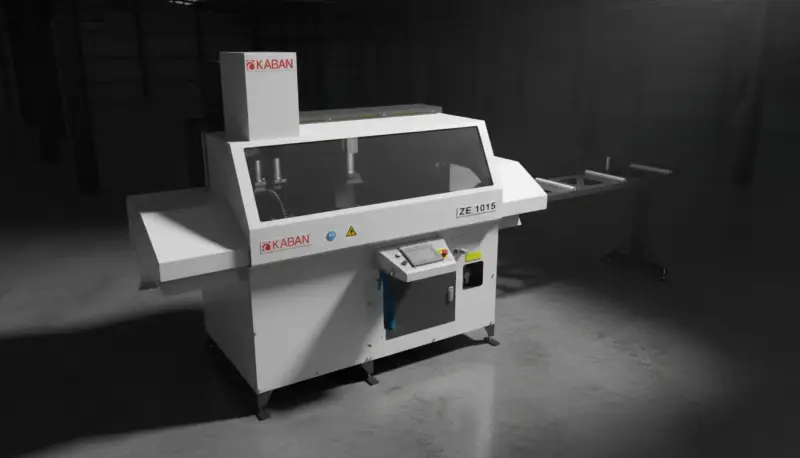

Automatic Aluminium Corner Connector Profile Cutting & Drilling Machine ZE 1015

‹ ›

Automatic Aluminium Corner Connector Profile Cutting and Drilling Machine

ZE 1015

The ZE 1015 automatic aluminium corner connector profile cutting and drilling machine is a specialized production solution developed for manufacturers that require fast, precise, and repeatable processing of corner connector profiles in aluminium window, door, and facade systems. In modern fabrication environments, the quality of the corner connection directly influences the stability, alignment, and long-term performance of the finished frame. For this reason, choosing a high-performance aluminium corner connector cutting and drilling machine is an important investment for any company focused on efficient aluminium profile processing.

Designed for demanding industrial use, the ZE 1015 combines cutting, drilling, and tapping capability in one compact and highly productive system. As an automatic aluminium corner connector cutting and drilling machine, it helps simplify production flow, reduce manual handling, and improve consistency across high-volume manufacturing. Its strong mechanical structure, servo-controlled automatic feeding system, Ø 500 mm saw, Mitsubishi PLC control, and integrated hole drilling and tapping unit make it a practical and advanced solution for producers who want reliable daily performance.

In aluminium fabrication, speed alone is never enough. Accuracy, operational stability, repeatability, and ease of use are equally important. The ZE 1015 has been engineered to meet these expectations. Whether the application involves aluminium windows, aluminium doors, curtain wall systems, or architectural framing systems, this aluminum corner connector cutting and drilling machine offers the processing quality needed for professional production standards.

Built for professional aluminium corner connector processing

The ZE 1015 is designed specifically as an aluminium corner connector cutting and drilling machine for precise preparation of corner keys and connection profiles used in aluminium systems. In the manufacturing of aluminium windows and doors, corner connectors must often be cut to exact dimensions and then drilled or tapped for further assembly requirements. By combining these operations into a single machine concept, the ZE 1015 improves workflow efficiency and supports a more organized production process.

As a corner connector profile cutting and drilling machine, it enables manufacturers to move beyond simple cutting functions and integrate additional processing steps directly into the corner connector preparation stage. This leads to better process continuity, lower handling time, and more consistent part quality. Companies seeking an aluminium window corner connector cutting and drilling machine or an aluminium door and window corner connector machine will find the ZE 1015 especially valuable in environments where precision and productivity must go hand in hand.

Strong mechanical structure for high-speed operation

A major advantage of the ZE 1015 is its robust mechanical structure suitable for high speeds. In industrial machinery, structural rigidity is one of the core elements behind long-term performance. A stable machine body helps reduce vibration, supports consistent cutting quality, and contributes to better drilling and tapping accuracy.

For companies investing in a precision aluminium corner connector cutting machine, the rigidity of the machine frame is critical. A weak or unstable structure can affect the cut surface, the drilling position, and the general repeatability of the process. The ZE 1015 is built to deliver reliable operation even under continuous production demand. This makes it an effective CNC aluminium corner connector cutting and drilling machine for workshops and factories where production speed must be combined with dependable quality.

Efficient cutting performance with Ø 500 mm saw blade

The ZE 1015 is equipped with a Ø 500 mm saw blade designed for 90° cutting. This saw size provides the cutting capacity and stability required for precise corner connector processing. Clean, accurate cuts are essential when producing corner keys and connector elements for aluminium profile systems, because every dimensional deviation can affect the final frame connection.

As an aluminium corner key cutting and drilling machine, the ZE 1015 offers a balanced combination of saw power and control. The 90° cutting principle is particularly suitable for the standardized processing of connector parts used in high-volume aluminium fabrication. For companies looking for a CNC corner connector cutting drilling machine or a corner connector cutting drilling tapping machine, the ZE 1015 offers a production-oriented approach that combines practical cutting geometry with industrial reliability.

Integrated drilling and tapping unit for expanded functionality

One of the defining features of the ZE 1015 is its hole drilling and tapping unit. This addition transforms the machine from a dedicated cutting system into a more complete aluminium corner connector profile cutting drilling machine. In modern production, combining multiple operations on one machine helps save time, reduce workpiece transfers, and improve overall efficiency.

Drilling and tapping are important steps in the preparation of many corner connector components. A separate operation often requires additional setup, additional labor, and extra transport between machines. By integrating these capabilities directly into the ZE 1015, manufacturers can streamline production and achieve more consistent results. This makes the machine an ideal choice for companies seeking an automatic corner key cutting and drilling machine that can handle several essential processing tasks in a controlled and repeatable way.

For aluminium fabricators, this integrated processing concept supports not only productivity but also better quality control. The more operations that can be completed within one organized workflow, the easier it becomes to maintain dimensional accuracy and reduce process variations. This is one of the reasons the ZE 1015 stands out as an advanced aluminum corner key cutting and drilling machine for modern production facilities.

Servo-controlled automatic profile feeding and slicing system

The servo-controlled automatic profile feeding and slicing system is another key strength of the ZE 1015. In automated aluminium machining, accurate feeding is essential for maintaining length precision and reducing waste. Servo technology improves positioning performance and allows the machine to handle repetitive operations with greater consistency.

As an automatic aluminium corner connector cutting and drilling machine, the ZE 1015 minimizes manual intervention and supports smoother production flow. The operator benefits from easier handling, while the manufacturer benefits from improved repeatability and reduced risk of human error. For factories that want to standardize processing quality and increase throughput, this kind of automatic feeding system is a major advantage.

The servo-based feeding concept also strengthens the ZE 1015 as a CNC aluminium corner connector cutting and drilling machine suitable for scalable production. When processing corner connectors in larger quantities, even small improvements in feed accuracy and automation can result in significant gains in overall manufacturing efficiency.

Lift, slide, and cut-and-run systems for optimized workflow

The ZE 1015 incorporates lift, slide, and cut-and-run systems to support fast and efficient workpiece movement. These systems are especially useful in production lines where minimizing idle time is important. Instead of relying on slow or heavily manual transitions, the machine is designed to maintain a steady workflow from feeding to cutting and onward to drilling and tapping operations.

In a corner connector cutting drilling tapping machine, workflow efficiency is just as important as tool performance. The ZE 1015 has been developed with this production logic in mind. The integrated movement systems help improve operational rhythm, reduce interruptions, and contribute to a cleaner process structure. For businesses seeking an aluminium corner connector cutting and drilling machine that fits into professional manufacturing routines, this design offers clear practical benefits.

Secure profile fixation with pneumatic clamping

For accurate processing, the material must remain stable during cutting, drilling, and tapping. The ZE 1015 uses pneumatic clamping on the front and top surfaces for profile fixation. This clamping arrangement helps keep the workpiece securely positioned and supports better dimensional consistency throughout the machining cycle.

For any aluminium profile corner connector drilling machine, reliable clamping is essential. Movement during cutting can lead to poor surface quality, while movement during drilling or tapping can affect hole position and thread accuracy. The pneumatic system on the ZE 1015 helps avoid these problems and contributes to a more secure and repeatable production process.

This is especially important in the production of aluminium window and door systems, where component precision plays a major in final assembly quality. A stable workpiece means better part consistency, and better part consistency means fewer downstream fitting issues.

User-friendly control and modern interface

The ZE 1015 is equipped with a 7-inch touchscreen, a user-friendly topper interface, and a Mitsubishi PLC control system. This combination allows for straightforward machine management, clear monitoring of production functions, and easier parameter adjustment. In industrial settings, intuitive control systems reduce training time and help operators work with greater confidence.

A modern interface is not just a convenience feature. It is a productivity feature. When operators can quickly understand settings, manage processes efficiently, and respond to production needs without confusion, the entire operation benefits. As a CNC aluminium corner connector cutting and drilling machine, the ZE 1015 offers the type of control architecture that supports professional manufacturing environments where efficiency and clarity matter every day.

The Mitsubishi PLC system also strengthens the machine’s reliability and process control capability. For manufacturers that prioritize industrial-grade automation, this is an important feature that adds value beyond the purely mechanical aspects of the machine.

Cutting fluid spray system and safety-focused design

The ZE 1015 includes a cutting fluid spray system that supports cutting quality and helps maintain stable processing conditions. In aluminium machining, proper cooling and lubrication can improve cut performance, contribute to better tool life, and support cleaner processed surfaces.

The machine is also equipped with safety covers, which help protect the working area and improve operational safety. For industrial users, safety is an essential part of machine design. A productive machine must also be a machine that supports safe daily operation. The ZE 1015 addresses both process performance and workplace protection in a balanced way.

Application areas of the ZE 1015

The ZE 1015 is suitable for a wide range of production requirements related to aluminium profile systems.

Aluminium window production

As an aluminium window corner connector cutting and drilling machine, it supports the preparation of connector parts used in window frame and sash fabrication.

Aluminium door manufacturing

In door production, the machine enables the precise cutting, drilling, and tapping of connector elements needed for strong and accurate corner assembly.

Facade and architectural systems

For facade production and architectural aluminium systems, the ZE 1015 provides consistent corner connector processing that supports structural precision and manufacturing efficiency.

Technical Data

The ZE 1015 automatic aluminium corner connector profile cutting and drilling machine is a powerful solution for manufacturers that need speed, accuracy, and multifunctional capability in one system. By combining cutting, drilling, and tapping with automated feeding and industrial-grade control, the machine supports a more efficient and more reliable production process for aluminium windows, doors, and facade systems.

Its strong mechanical structure, Ø 500 mm saw, pneumatic clamping, Mitsubishi PLC control, lift and slide systems, and integrated hole drilling and tapping unit make it a competitive option for companies looking for an aluminium corner connector cutting and drilling machine that delivers real production value. Whether the requirement is for a corner connector profile cutting and drilling machine, an aluminium corner key cutting and drilling machine, or a corner connector cutting drilling tapping machine, the ZE 1015 offers a practical and professional answer for modern aluminium fabrication.
