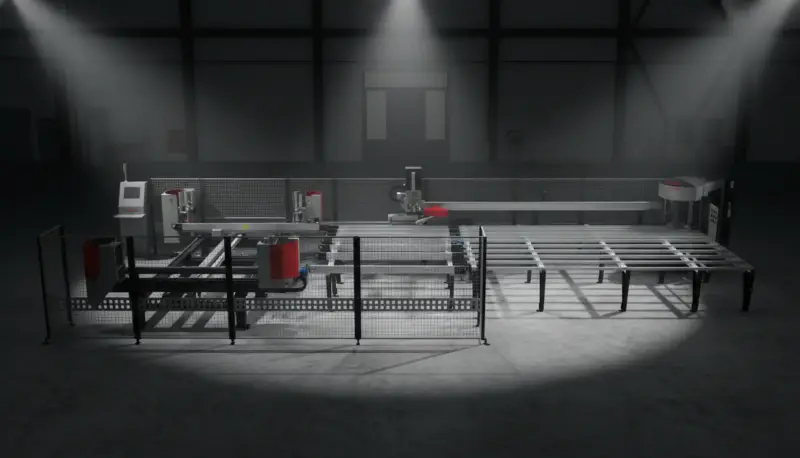

PVC Welding and Corner Cleaning Center TD 3020

‹ ›

TD 3020 PVC Welding and Corner Cleaning Center

Integrated Welding and Corner Cleaning for Efficient PVC Window Production

The TD 3020 is a high-performance manufacturing solution developed for companies that require speed, precision, automation, and consistent finishing quality in modern PVC window fabrication. As a professional PVC welding and corner cleaning center, this machine combines frame welding and automatic corner cleaning in one highly efficient system. Wolftech Machine offers the TD 3020 as a production-focused solution for manufacturers who want to reduce manual handling, improve workflow continuity, and achieve cleaner final frame results in demanding PVC and UPVC processing environments.

In industrial window production, welding and corner cleaning are two of the most critical stages in the entire manufacturing process. The strength, geometry, and appearance of a PVC frame depend heavily on the quality of the welded corners and the precision of the post-weld cleaning process. A dependable PVC welding and cleaning center must therefore deliver not only strong four-corner welding performance, but also accurate CNC-supported burr removal and intelligent transport between the different process stages. The TD 3020 has been designed to meet these exact expectations.

Welding and Cleaning the Four Corners in One Process

Complete four-corner production workflow

The TD 3020 is designed for welding and cleaning the four corners of the frames in one coordinated production flow. This makes it a strong CNC welding and cleaning center for PVC profiles for manufacturers who want to simplify production and reduce the need for separate machines and manual transfer between workstations. By combining welding, cooling, robotic frame transport, and automatic cleaning in one system, the machine helps improve both speed and consistency.

As a PVC profile welding and corner cleaning center, the TD 3020 supports a more organized fabrication process in which welded frames move efficiently from one step to the next. This improves output quality and helps manufacturers maintain a smoother production rhythm across repeated working cycles.

High-speed mechanical structure for industrial use

The machine features a robust mechanical structure suitable for high speed, which is essential in integrated production systems where both welding precision and finishing quality depend on machine stability. A strong structure reduces vibration, supports accurate process control, and helps maintain consistent output in high-volume production.

This gives the TD 3020 a clear advantage as a PVC window welding and cleaning center for companies that need reliable performance in busy manufacturing environments. Whether producing standard white profiles or more specialized frame systems, the machine provides the mechanical strength required for continuous industrial use.

Advanced Welding Control for Different Profile Types

Adjustable heat and welding time

The TD 3020 includes heat adjustment according to profile type with a PID system, as well as heating and welding time adjustment according to the profile type. These features are especially important in PVC production because different profile surfaces and material combinations may require different welding parameters in order to achieve the best corner quality.

As a corner welding and cleaning line for PVC, the TD 3020 gives manufacturers more process control and allows them to adapt the system according to the actual production need. This improves weld consistency and helps ensure stronger, cleaner, and more reliable corners across different profile series.

Easy mold change and tolerance control

The machine also offers easy change of welding molds, which is a valuable advantage in plants where different profile systems must be processed efficiently. Faster mold changes help reduce downtime and improve flexibility when switching between jobs. The tolerance system further enhances precision by helping maintain accurate frame dimensions and stable welding quality throughout the production cycle.

This makes the TD 3020 a dependable four corner PVC welding and cleaning line for manufacturers who want both production speed and dimensional accuracy in one integrated machine concept.

Automated Transfer from Welding to CNC Cleaning

Cooling conveyor and robotic transfer

One of the key strengths of the TD 3020 is its cooling conveyor, which transports the frame to the robot after the welding machine. Proper cooling is essential before corner cleaning begins, because the frame must reach the right condition for accurate finishing. Integrating this cooling phase directly into the machine flow improves process reliability and helps maintain production efficiency.

The robot then moves the frame from the cooling table to the CNC corner cleaning machine. This robotic transfer reduces manual handling and keeps the frame aligned during transport. As an automatic PVC welding and corner cleaning center, the TD 3020 offers a much more efficient workflow than traditional separate-machine arrangements.

Automatic frame turning for complete corner cleaning

The cleaning stage is designed to process all four corners by automatically turning the frame. This is one of the most valuable automation features of the TD 3020 because it allows full corner finishing without repeated manual repositioning. For manufacturers, this means more consistent results, faster throughput, and less operator dependency.

This capability also makes the machine a strong PVC frame welding and corner cleaning center for businesses that want a fully coordinated production sequence from raw welded frame to finished cleaned frame.

Full-Surface Burr Removal and Laminated Profile Processing

Cleaning upper, lower, inside, and outside areas

The TD 3020 cleans welding chips on the lower and upper surfaces with stripping blades, removes chips inside the frame including sill frames, and cleans chips outside with a saw. This complete finishing system is essential because professional PVC window production requires more than just external visual cleaning. The internal areas and sill-related zones must also be processed accurately to ensure clean geometry and high assembly quality.

As a CNC PVC corner cleaning and welding center, the TD 3020 is designed to provide this complete finishing performance in a dependable and repeatable way. The result is a cleaner frame, reduced manual rework, and more professional final product quality.

Suitable for laminated profiles

Another important advantage is the ability to clean laminated profiles. Laminated PVC surfaces are more sensitive than standard white profiles and often require more careful cleaning in order to preserve their appearance. The TD 3020 supports this requirement, making it highly relevant as a PVC profile welding and cleaning line for companies producing both standard and decorative frame systems.

This also strengthens its position as a welding and corner cleaning machine for PVC profiles for manufacturers that need flexibility across a wide range of production applications.

Smart Control and Operator-Friendly Production

Mitsubishi PLC and user-friendly Kaban interface

The TD 3020 is equipped with a Mitsubishi PLC control system and a user-friendly Kaban interface with an easily adjustable parametric structure. This gives operators practical and reliable control over the machine and makes it easier to adapt settings for different profile types and production tasks. In modern fabrication, easy control is a major advantage because it improves consistency and reduces setup time.

Working with a barcode reader also supports better traceability and smoother integration into digital production environments. Together with the ease of profile feeding, these features make the TD 3020 a true high speed PVC welding and cleaning center for modern manufacturing plants.

Why Choose the TD 3020 from Wolftech Machine

One coordinated solution for welding and deburring

Wolftech Machine offers the TD 3020 as a dependable and highly efficient solution for integrated welding and corner cleaning in PVC and UPVC profile manufacturing. Its combination of four-corner welding, PID-controlled heat adjustment, cooling conveyor, robotic frame transport, automatic turning, complete burr removal, laminated profile processing, and intelligent control technology makes it a valuable investment for professional producers.

For companies looking for a reliable PVC corner welding and cleaning machine or a complete PVC welding and deburring center, the TD 3020 provides the speed, automation, and finishing quality required in modern industrial production.

Technical Data

The TD 3020 is a professional PVC welding and corner cleaning center designed for fast, accurate, and highly automated production of welded PVC and UPVC frames. With its integrated four-corner welding function, PID-controlled heat adjustment, easy mold change, cooling conveyor, robotic transport, automatic frame turning, complete burr removal system, laminated profile cleaning capability, Mitsubishi PLC control, and user-friendly Kaban interface, it offers an excellent solution for modern manufacturers. For businesses seeking a dependable PVC welding and cleaning center with high-speed production capability and superior finishing quality, the TD 3020 from Wolftech Machine is a strong and future-oriented choice.
